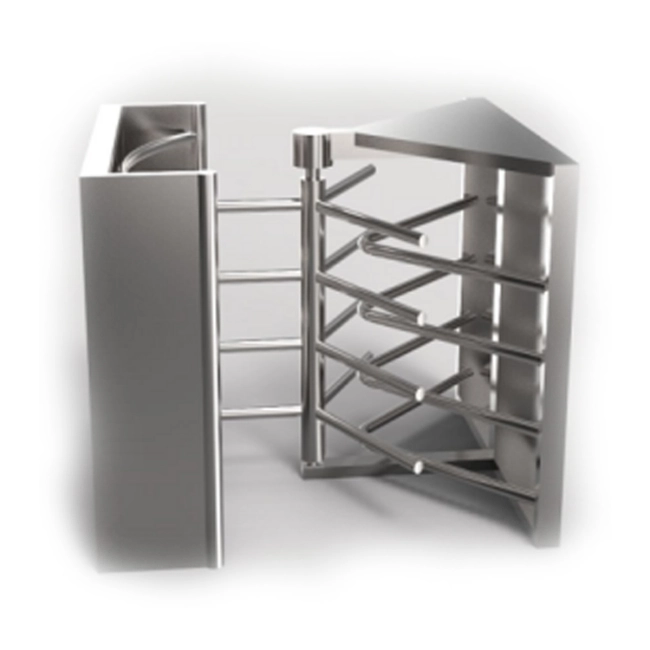

Torniquete de acero inoxidable de altura completa
IM.Q805
IM.Q805 Full Height Turnstile is a completely ergonomic product with excellent structural integrity, which provides the optimum level of security and perfectly combines with numerous methods of identity verification. It is designed to be highly controlled in access control in high security areas, and it has advanced features in order to prevent unauthorized access.
-
Arm Length : 500milímetro
-
Ancho de paso : 550-600milímetro
-
Velocidad de adelantamiento : ≤ 35 personas/min
-
Material ：304 Stainless Steel Material
-
Dimensiones : Largura 2530* Ancho 1550* Height 2170mm
Reconocimiento facial
Pantalla LED
8 Pares de detectores infrarrojos
QR
The stainless steel full height turnstile offers a strong and weatherproof access control to pedestrians. Constructed using high grade SUS304 stainless steel, Es resistente a la corrosión, impact and temperature variations thus it can be used in outdoors locations like factory gates, military compounds and logistics centers. The full-height swiveling arms formed a total physical barrier between the floor and the ceiling and guarantee each movement.
This turnstile will aid in anti-tailgating detection and reverse-entry. In case of abnormal behavior, it will immediately generate the alerts and block the passage. The users move through the lane with LED indicators and voice prompts, which minimize confusion and improves throughput. These are user friendly indicators that enhance safety and efficiency.
The stainless steel full height turnstile can easily be integrated with an array of verification solutions such as RFID readers, QR code scan, biometric sensors and face recognition terminals. Además, there are centralized access control platforms that are able to monitor, record and control user permissions remotely.
There is also the emergency fail-safe in the system. It is also unlocked by default in case of a fire alarm or cut power supply, and one can evacuate swiftly and safely. Its internal design is easy to maintain as it is modular and is also reliable to operate on a daily basis.
Funciones
- Fully height barrier does not allow climbing, tailgating and reverse entry.
- Integración- Anti-tailgating detection and visual/audio alert.
- Constructed out of SUS304 stainless steel and an anti-corrosion coating.
- RFID compatible with biometric terminals, QR terminal and facial ID terminal.
- Unlocked by a fire alarm or a power cut.
- Supports single or bi-directional flow of access.
- Status lights and voice guidance controls to ease navigation.
- Internal structure is designed in a modular way to simplify servicing.
- Detalles del producto
- Características técnicas
- Técnicos y características
- Adaptabilidad
- Aplicación
Detalles del producto
Material y estructura de grado industrial
The stainless steel full height turnstile combines industrial-grade materials with intelligent control to deliver uncompromising access security. It ensures single-person entry while resisting harsh weather and unauthorized access in high-risk outdoor environments.
- Material: 304 Material de acero inoxidable, top box and guardrail thickness 1.2mm, rotating arm thickness 2.0mm
- Resistencia a la corrosión: Aprobado ISO 9227 Prueba de niebla salina (2,000 Horas libres de óxido)
- Rango de temperatura: -30De C a +70C (Compatibilidad interior/exterior)
- Calificación de Protección: Resistencia al agua y al polvo (Funcionamiento estable bajo lluvias intensas y polvo)
Características técnicas
Especificaciones técnicas básicas
| Dimensiones | largura 2530* Ancho 1550* height 2170mm |
| Arm Length | 500milímetro |
| Passing Direction | support one-way and two-way (opcional) |
| Velocidad de adelantamiento | ≤ 35 personas/min |
| Ancho de paso | 550-600milímetro |
| Tensión de alimentación | AC110-220±10%V 50HZ |
| Drive Current | > 200mA |
| Integración | Supports ID card/IC card/QR code recognition/RS485/relay Interfaces |
Técnicos y características
Características técnicas y de seguridad
Smart Access Control System
Unique Design：
The turnstile adopts a unique appearance and structural design, which is not only beautiful and elegant, can integrate with various architectural environments, and enhance the overall image of the place, but also more in line with ergonomics in structural layout, facilitating personnel to pass quickly and smoothly.
High Security：
It has extremely high safety performance, is made of high-strength and durable materials, can withstand large impact forces, and effectively prevent man-made damage. Al mismo tiempo, it is equipped with a precise detection device that can monitor the channel status in real-time, and once an abnormal situation is found, the corresponding safety mechanism will be activated immediately.
Anti-Reverse & Anti-Tailgating:
The turnstile is designed with anti-reverse and anti-tailgating functions. The anti-reverse function can prevent personnel from passing through the turnstile in the opposite direction, avoiding confusion in entry and exit management. The anti-tailgating function can effectively prevent multiple people from following one authorized person to pass through, ensuring that only one person can pass through each time after successful identification, thus ensuring the strictness of access control.
Support for Multiple Identification Methods：
It supports multiple identity recognition methods such as fingerprint recognition, card swiping recognition (such as IC card, ID card), Reconocimiento facial, password recognition, etcetera. Users can flexibly choose according to actual needs, meet the use requirements in different scenarios, and improve the convenience and flexibility of channel management.
Adaptabilidad
Adaptabilidad al mercado global
- Voltaje: 100-240V entrada de amplio alcance (Compatibilidad global de red)
- Soporte lingüístico: 24/7 Servicio en Inglaterra
- Certificación: ESE,FCC,ISO9001
Aplicación
Escenarios de aplicación
- Industrial Sites
- Transportation Hubs
- Stadiums and Arenas
- Prisons and Correctional Facilities
- Data Centers
