Tarjeta de control de acceso multifuncional

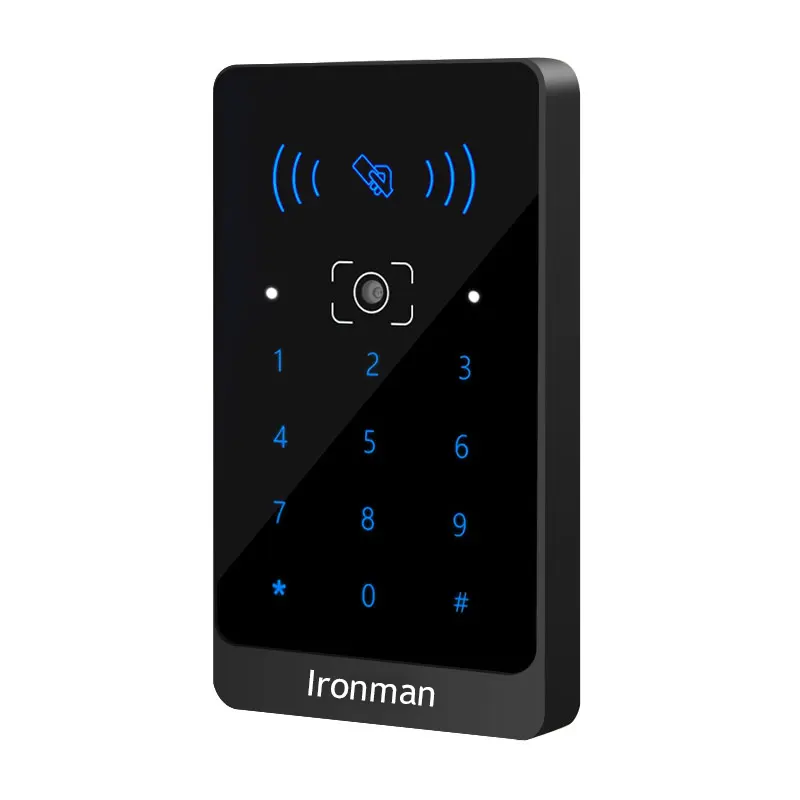

Lector multifuncional de tarjetas de control de acceso

IM.C5

The QR Code Access Control Reader IM.C5 is a cost-effective access control readhead specially launched for project engineering. It supports neutral products and exclusive customization — panel patterns, logos, and texts can all be tailored to enhance your brand competitiveness. With its exquisite and compact design, the IM.C5 features a tempered glass panel, offering a wide scanning angle, Velocidad de reconocimiento rápida, and high identification accuracy. Boasting strong compatibility, it can be connected to access control controllers of any brand, and its installation and wiring are simple and convenient.

Recognition Method: QR Code/IC Card/CPU Card/ID Card/Password Keyboard
Reading Angle: Rotation Angle 360°, Elevation Angle ±55°, Deflection Angle ±55°
Ángulo de barrido: 72° (Horizontal), 54° (Vertical), 84° (Diagonal)
Velocidad de lectura:<200ms
Dimensiones: 108.87x63.87x15.15mm
Distancia de reconocimiento: QR Code 5-30cm; IC Card 2-6cm; ID Card 1-3cm

CONTÁCTENOS

DESCARGAR

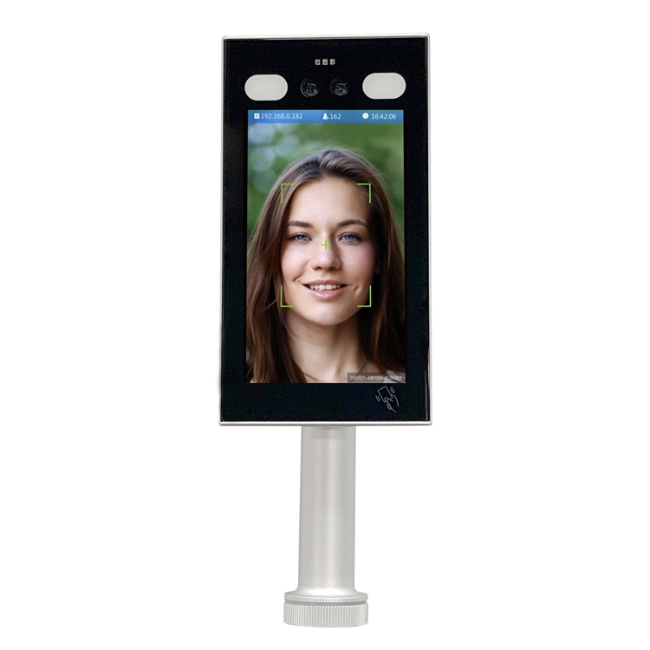

Reconocimiento facial

Pantalla LED

8 Pares de detectores infrarrojos

The Multifunctional Access Control Card Reader is engineered with a robust, industry-grade design to withstand daily use in demanding access control environments. Its housing is constructed from high-strength ABS plastic or zinc alloy (opcional), offering excellent resistance to impact, abrasion, and corrosion. This ensures long-term durability in both indoor and semi-outdoor installations, including high-traffic zones such as entrances, portones, elevadores, and turnstiles.

Multifunctional Access Control Card Reader – Versatile, Seguro, and Easy to Integrate

Built for both indoor and semi-outdoor environments, this card reader offers reliable performance in offices, fábricas, escuelas, hospitals, and residential complexes. Its compact design allows surface or flush mounting on walls, portones, or embedded into access equipment.

Depending on configuration, the device supports 125KHz (EM), 13.56MHz (MIFARE/IC), CPU cards, and encrypted formats. It can also be combined with additional modules such as QR code readers, keypads, or biometric sensors to enable multi-factor authentication.

Funciones:

Supports multiple card formats: EM, MIFARE, encrypted IC, CPU cards
Optional support for QR code, PIN, or biometric modules
Wiegand 26/34, RS485, or TCP/IP output for system compatibility
Fast reading speed and high recognition accuracy
Visual feedback via LED indicator and optional buzzer
Waterproof and dust-resistant housing for semi-outdoor use
Tamper detection and alarm signal support
Available in desktop, wall-mounted, or embedded versions
Compatible with most third-party access controllers and platforms

The multifunctional access control card reader is ideal for projects requiring high flexibility, scalable integration, and consistent user performance. Whether used for employee attendance, visitor management, or entry restriction, it provides a secure and efficient front end for modern access control systems.

Detalles del producto
Características técnicas
Características funcionales
FAQs

Detalles del producto

Material y estructura de grado industrial

The device features a sealed casing structure, which protects the internal circuitry from dust, moisture, and unauthorized tampering. With an IP54 protection rating, the card reader is suitable for semi-exposed locations such as covered outdoor entryways, parking structures, or factory gates. Optional waterproof versions are also available for full outdoor deployment.

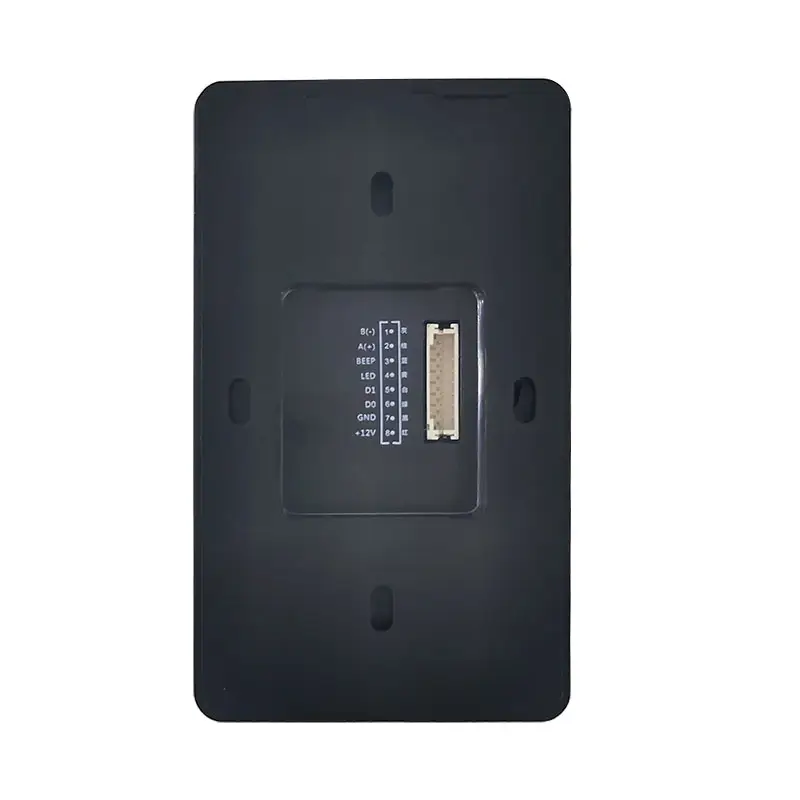

Its compact and low-profile design allows for easy wall-mount or embedded installation. Reinforced mounting points and anti-theft screw positioning prevent accidental dislodging or tampering. Internally, the reader is designed with high-quality PCBs and secure terminal blocks to ensure stable power and signal connections over time.

For environments requiring additional physical protection, the unit can be enclosed in a metal backplate or integrated into stainless steel housing when mounted onto access gates or kiosks.

Whether installed in a corporate lobby or an industrial checkpoint, the reader’s material quality and structural integrity provide a reliable foundation for long-term, uninterrupted access control performance.

Características técnicas

Especificaciones técnicas básicas

Parámetro	Especificación
Recognition Method	QR Code/IC Card/CPU Card/ID Card/Password Keyboard
Reading Distance	QR Code 5-30cm; IC Card 2-6cm; ID Card 1-3cm
Reading Angle	Rotation Angle 360°, Elevation Angle ±55°, Deflection Angle ±55°
Velocidad de lectura	<200ms
LED Indicator	Dual-color (red/green) status light
Buzzer	Optional audible feedback
Voltaje de funcionamiento	DC 9–15V (typical 12V)
Power Consumption	< 2W
Temperatura de trabajo	-20°C a +60°C
Protección contra la entrada	IP54 (standard); optional waterproof housing
Dimensiones	108.87x63.87x15.15mm
Installation Mode	Montado en la pared / Incrustado / Desktop
Interface Protocols	Wiegand, RS485, TCP/IP, USB (for desktop mode)

Características funcionales

Supports multiple card types for flexible identity verification
Fast and stable reading performance with low response delay
Dual-color LED and buzzer for intuitive user feedback
Tamper protection with alarm signal output when unauthorized disassembly occurs
RS485 and Wiegand output support seamless integration with most access control systems
Optional add-ons: keypad, fingerprint module, or QR code reader for enhanced security
Weather-resistant design suitable for indoor and sheltered outdoor use
Compact form factor with flexible installation options
Works independently or as part of a centralized access platform
Supports encrypted formats for higher security applications

FAQs

1. What types of cards does this reader support?
It supports 125KHz (EM), 13.56MHz (MIFARE/IC), CPU cards, and encrypted IC cards.

2. Can it be integrated with an existing access control system?
Sí. It supports Wiegand 26/34, RS485, and optional TCP/IP output, compatible with most third-party systems.

3. ¿Es adecuado para uso en exteriores??
The standard version is IP54 rated, suitable for indoor and semi-outdoor use. Fully waterproof versions are available on request.

4. Can I add biometric or QR code functions?
Sí. Optional modules like fingerprint sensors, keypads, and QR code readers can be integrated for multi-factor authentication.

5. What happens if the device is tampered with?
It includes tamper detection functionality and can trigger an alarm signal when unauthorized removal or disassembly is detected.
