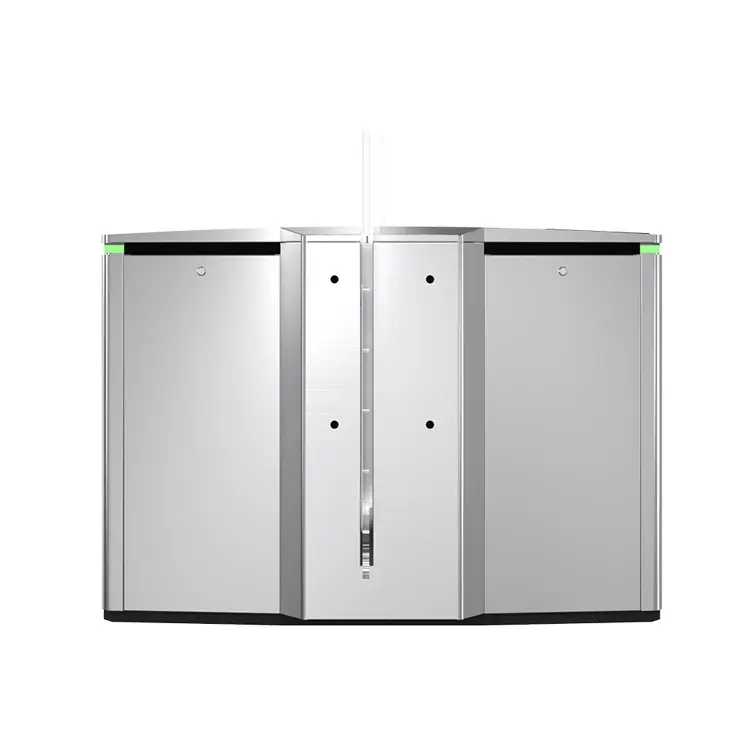

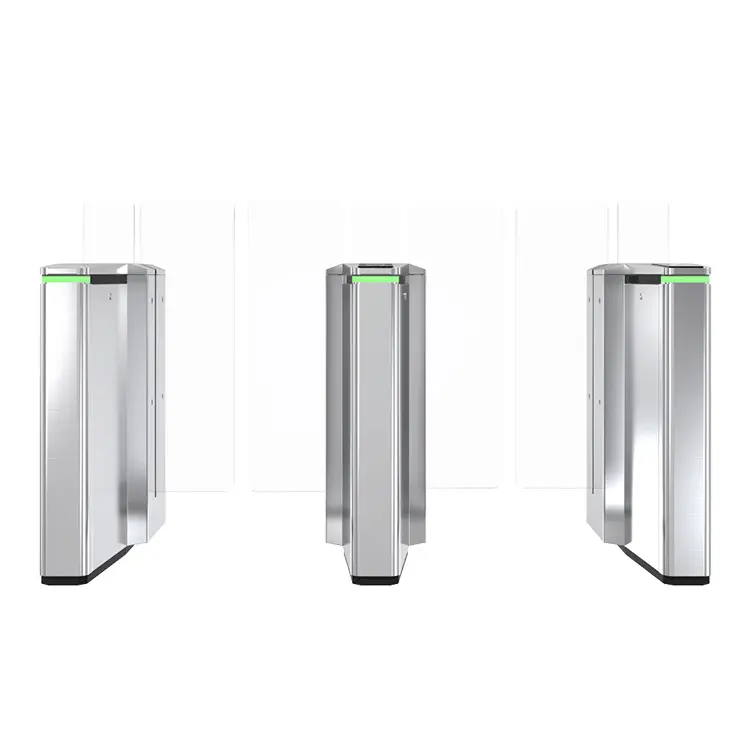

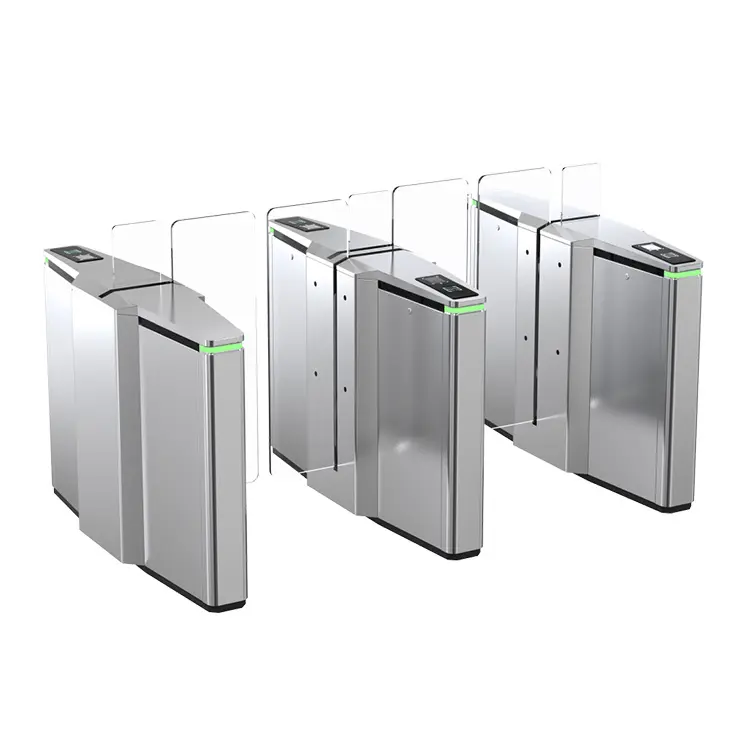

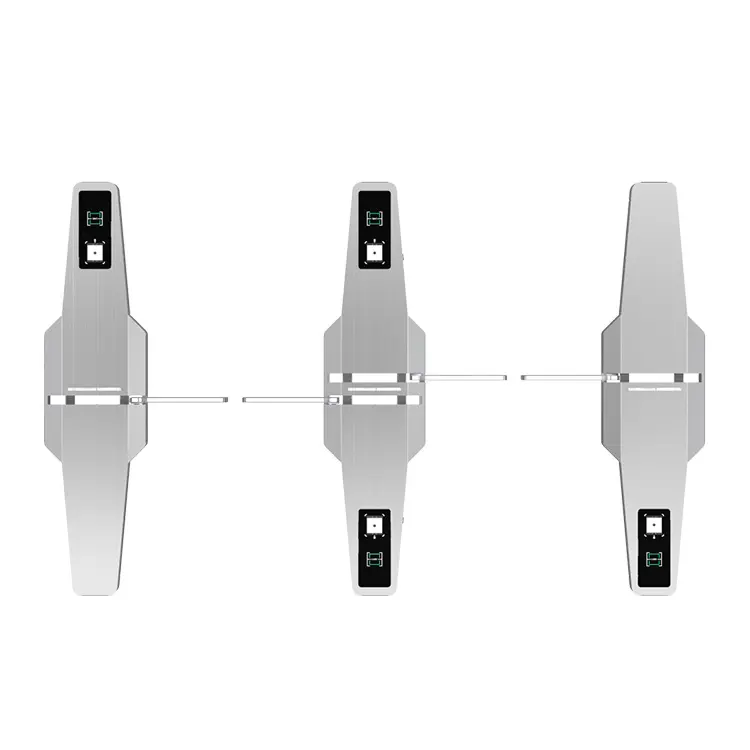

Torniquete de puerta corredera de cristal
IM.FL.01
A smooth, tough sliding gate that has smart sensing abilities, bi-authorization, and visual indicators, all designed to provide safe and efficient access to the modern public and private environment.
-
Ancho de paso:550milímetro
-
Velocidad de adelantamiento:≤ 40 personas/min
-
Sistema de detección:8-Sensores infrarrojos puntuales
-
Material:Material: 304 Material de acero inoxidable
-
Dimensiones:largura 1400* Ancho 345* Altura980mm
Reconocimiento facial
Pantalla LED
8 Pares de detectores infrarrojos
QR
The glass sliding gate turnstile provides a balance between visual and security. Thus it fits offices, transport centers, and commercial properties of high-end specifications. The glass panels are tempered and provide durability and a modern look. Por lo tanto, the sliding nature of the panels lets one gain access speedily, silently, and efficiently. A warning monitor advises users against inappropriate access, enhancing safety and sanity in crowded places. The system offers verification of employees and visitors with ID card and QR code recognition options.
Smart Access Control and Integration
The glass sliding gate turnstile configures by administrators to facilitate RFID, Reconocimiento biométrico, NFC móvil, or third-party access platform along with ID and QR systems. It operates in unidirection or bidirection. Además, common communication interfaces like TCP/IP, RS-485, and Wiegand enable a clean cut integration with the centralized monitoring or attendance software. The real-time data logging and role-based permissions contribute to the increase of security and operational control.
Funciones
- Strong and elegant glass sliding doors.
- 8 sets of infrared sensors to precisely track pedestrians.
- Alarm when there is unauthorized or inappropriate access.
- Bears an ID card and QR code recognition system.
- RFID, biométrico, and mobile NFC platform integration.
- Adjustable width of the passage and a two-way functioning.
- Simple servicing and upgrade modular structure.
The modular design of the system also eases up maintenance as replacement of glass panels, sensors and control boards can be done easily. Remote diagnostics provides information about the numbers of cycles, the state of the detector, and the health of the devices to prevent disruptions and schedule the preventive service. Además, the glass sliding gate turnstile offers a secure and efficient control of pedestrian traffic in the contemporary facilities.
- Detalles del producto
- Características técnicas
- Técnicos y características
- Adaptabilidad
- Aplicación
Detalles del producto
Material y estructura de grado industrial
The glass sliding gate turnstile combines tempered glass panels with intelligent detection and multiple verification methods, ensuring stylish design and reliable pedestrian management. Equipped with ID card and QR code recognition, it provides safe and smooth access control for modern facilities.
- Material：base 2.0mm (black fine sand paint); Chassis1.5mm (SUS304); Top panel 2.0mm (SUS304)Corrosion
- Resistance: Aprobado ISO 9227 Prueba de niebla salina (2,000 Horas libres de óxido)
- Rango de temperatura: -30De C a +70C (Compatibilidad interior/exterior)
- Calificación de Protección: Resistencia al agua y al polvo (Funcionamiento estable bajo lluvias intensas y polvo)
Características técnicas
Especificaciones técnicas básicas
| Dimensiones | largura 1400* Ancho 345* Altura980mm |
| Sistema de detección | 8-Sensores infrarrojos puntuales |
| Sistema de transmisión | Motor con escobillas |
| Velocidad de adelantamiento | ≤ 40 personas/min |
| Ancho de paso | 550milímetro |
| Tensión de alimentación | AC220±10%V 50HZ |
| Integración | Soporta reconocimiento de tarjeta de identificación/tarjeta IC/código QR/RS485/relé Interfaces/reconocimiento de código bidimensional |
Técnicos y características
Características técnicas y de seguridad
- Tempered Glass Material
- Made of iced tempered glass which offers our products unmatched durability and a smooth and contemporary look.
- Impact-resistant, scratch-resistant, and weather-resistant, which guarantees long-term performance.
- 8 Pares de detectores infrarrojos
- Using eight pairs of infrared sensors to sense motions that are accurate and anti-collision systems.
- Scans pedestrians and obstacles on the way and avoids accidents and provides safe passage.
- Pedestrian Access Gates (Alert Display)
- Has a visible alert display (e.g. LED indicators or screen) to indicate the state of the gate (e.g. open, closed, alarm).
- Penetrates the safety level by informing users about access rights or possible security violations.
- QR Code Recognition Systems and ID Card
- Ensures dual authentication through swiping of ID cards and scanning of QR codes.
- Connected with smart access control systems to manage users efficiently, which is appropriate in offices, Complejos de apartamentos, or other facilities.
Adaptabilidad
Adaptabilidad al mercado global
- Voltaje: 100-240V entrada de amplio alcance (Compatibilidad global de red)
- Soporte lingüístico: 24/7 Servicio en Inglaterra
- Certificación: ESE，FCC
Aplicación
Escenarios de aplicación
- Complejos de oficinas y edificios corporativos
- Estaciones de metro, Aeropuertos, y terminales de tren
- Estadios, arenas, y locales de ocio
- Escuelas, universidades, y comunidades residenciales
- Centros comerciales, Centros de exposiciones, e instalaciones industriales
