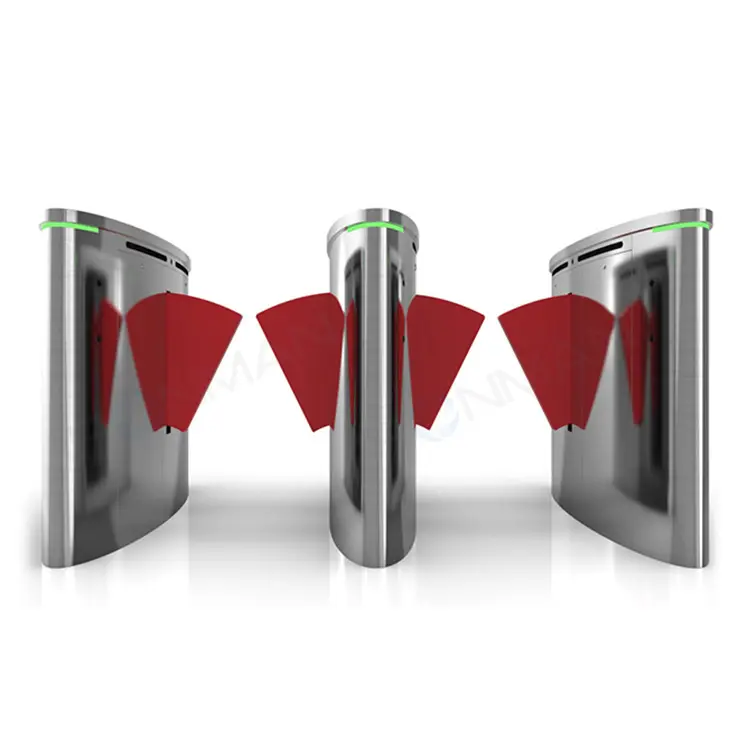

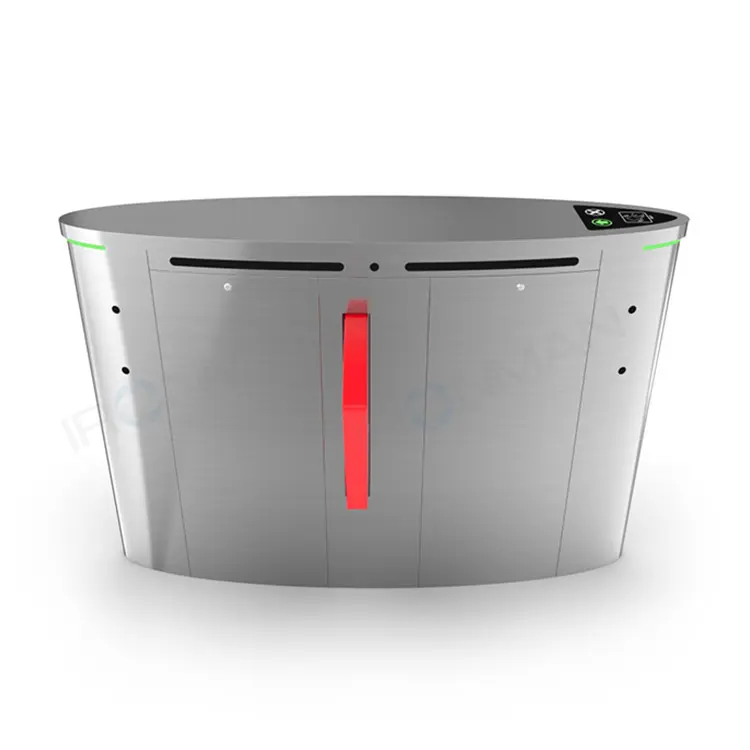

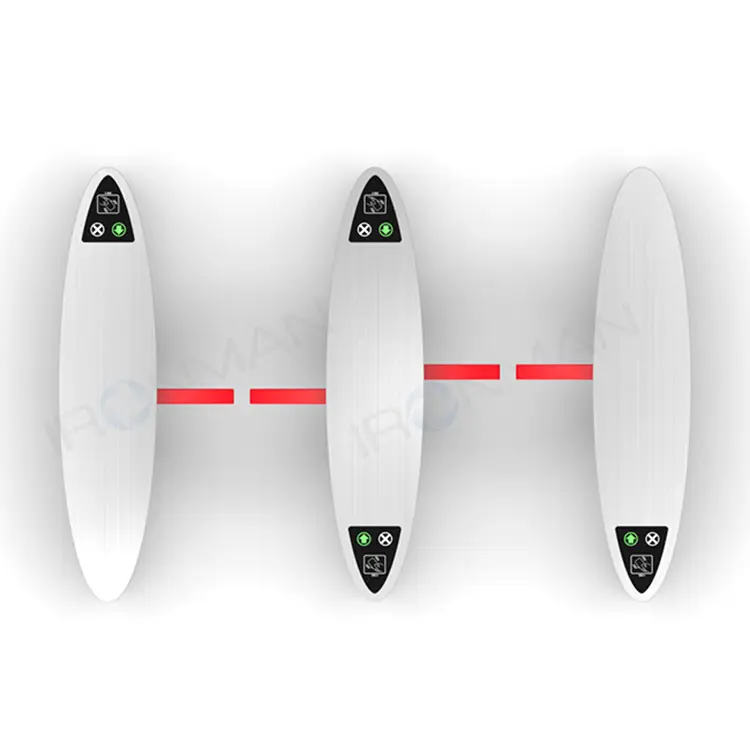

Compuerta compacta de barrera de solapas
IM.Y306
The IM.Y306 is a security enhanced and heavy-duty pedestrian gate with upgradable infrared detection (6-12 Pares), stainless steel housing of an industrial type, and smart access control. It has real time alert, wider integration capabilities, and compatibility with global voltages making it designed to work smoothly in airports, commercial complexes as well as high-traffic facilities across the globe.
-
Material：Acero inoxidable 304
-
Dimensiones：largura 1400* Ancho 300* Altura980mm
-
Sistema de detección:6 pairs of infrared detectors (12 pairs are optional)
-
Velocidad de adelantamiento:≤ 40 personas/min
-
Ancho de paso:600milímetro
Reconocimiento facial
Pantalla LED
8 Pares de detectores infrarrojos
QR
Compact flap barrier gate provides a good solution where there is less space on the floor space yet the security should not be compromised. Its design allows it to be installed in tight entry points and does not compromise access control functionality. Además, the system combines the facial or card-based verification, which provides the security of safe and fast check as well as pedestrian fluidity. Además, It also uses modular control board with RS485, TCP/IP and Wiegand protocols enabling it to integrate with third party access platforms.
Funciones
- Slim design in close interior areas.
- Opcional 612 pairs of infrared detectors to make a better detection.
- Smooth silent retraction flap arms that are fast responding.
- The support of facial or ID card or QR code authentication.
- LED direction display, voice guidance.
- Long-term stainless steel housing SUS304.
- Provides emergency release and fire alarm connection.
- Regular with a variety of access control systems.
- The gate is service friendly, with a top panel accessible, global voltage adaptability (AC 100240 V) and best installation. .
Además, The gate is service friendly, with a top panel accessible, global voltage adaptability (AC 100240 V) and best installation. Además, the flap barrier gate is a smaller unit that does not occupy much space.
- Detalles del producto
- Características técnicas
- Técnicos y características
- Adaptabilidad
- Aplicación
Detalles del producto
Material y estructura de grado industrial
The compact flap barrier gate combines minimal footprint with advanced access technologies to provide secure pedestrian flow in space-constrained environments. Built with stainless steel housing and enhanced with real-time infrared detection, it adapts seamlessly to airports, Campus, and busy commercial spaces.
- Material：Acero inoxidable 304，upper cover 2.0mm, Housing body 1.5mm; with Acrylic reader cover
- Resistencia a la corrosión: Aprobado ISO 9227 Prueba de niebla salina (2,000 Horas libres de óxido)
- Rango de temperatura: -30De C a +70C (Compatibilidad interior/exterior)
- Calificación de Protección: Resistencia al agua y al polvo (Funcionamiento estable bajo lluvias intensas y polvo)
Características técnicas
Especificaciones técnicas básicas
| Dimensiones | largura 1400* Ancho 300* Altura980mm |
| Sistema de detección | 6 pairs of infrared detectors (12 pairs are optional) |
| Sistema de transmisión | Motor con escobillas |
| Velocidad de adelantamiento | ≤ 40 personas/min |
| Ancho de paso | 600milímetro |
| Tensión de alimentación | AC220±10%V 50HZ |
| Integración | Supports ID card/IC card/QR code recognition/RS485/relay interfaces |
Técnicos y características
Características técnicas y de seguridad
Pantalla LED：
Combined high visibility LED screen to provide real-time status, user instructions and system alerts.
Infrared Detection System：
Normal setups: 6 pairs of infrared sensors in order to monitor pedestrian traffic and prevent tailgating accurately.
Upgrade: 12 pairs of infra-red sensors to increase security in busy places.
Pedestrian Access Gates Alert Display:
Audible and visual alarms are activated when an unauthorized access, tailgating, or system malfunctions have been identified which means that the security incidents are responded to quickly.
Sleek and Durable Design：
Made of the high-quality stainless steel, which is resistant to corrosion, and will last long, designed to be used both indoors and outdoors.
Smart Traffic Control:
Spreads many types of access (P ej.., RFID, Código QR, manual button) to provide a good level of flexibility in managing pedestrians in many situations.
Adaptabilidad
Adaptabilidad al mercado global
- Voltaje: 100-240V entrada de amplio alcance (Compatibilidad global de red)
- Soporte lingüístico: 24/7 Servicio en Inglaterra
- Certificación：ESE,FCC
Aplicación
Escenarios de aplicación
- Public transportation hubs (Aeropuertos, Estaciones de metro, train stations)
- Commercial complexes, Edificios de oficinas, and shopping malls
- Instituciones educativas, Hospitales, y las instalaciones gubernamentales
- Sports venues, Centros de exposiciones, y locales de ocio
