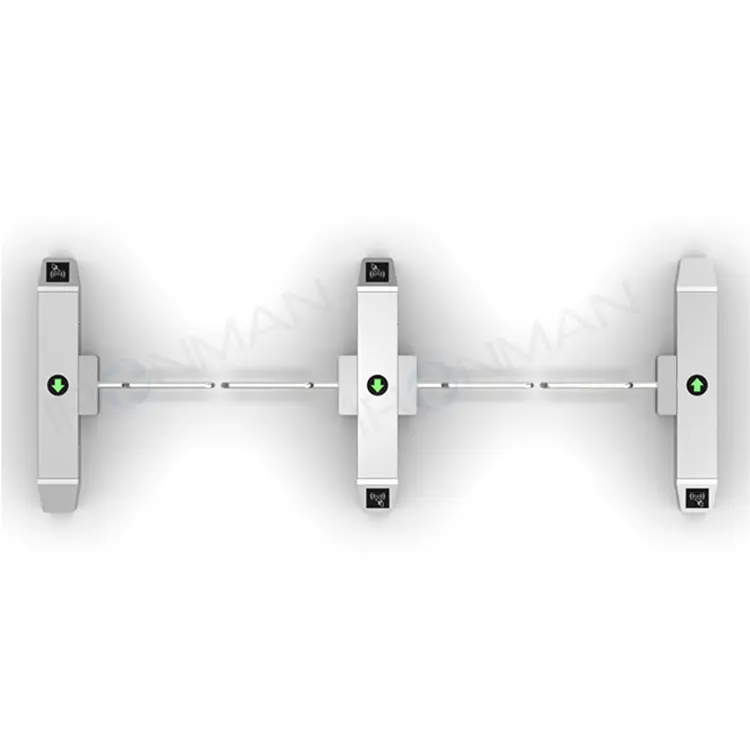

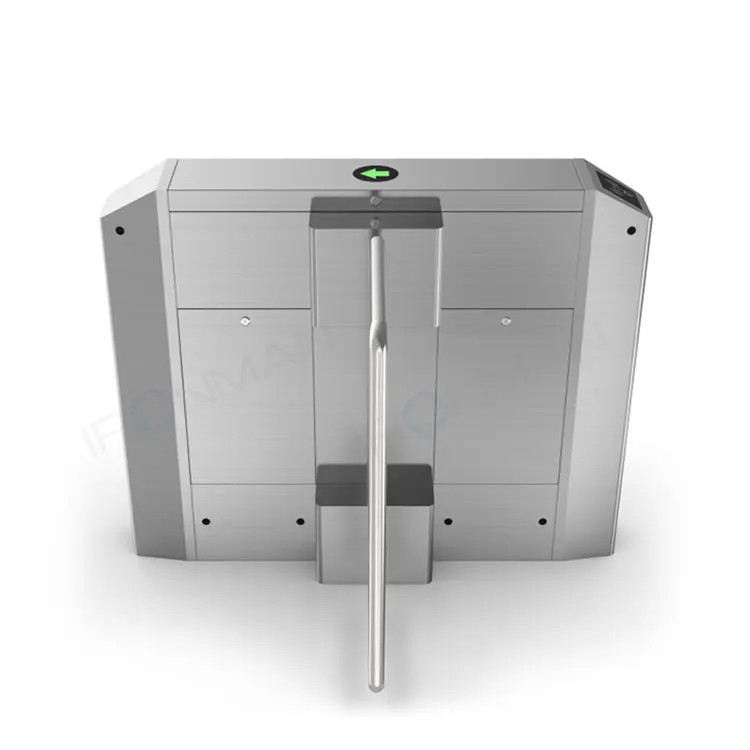

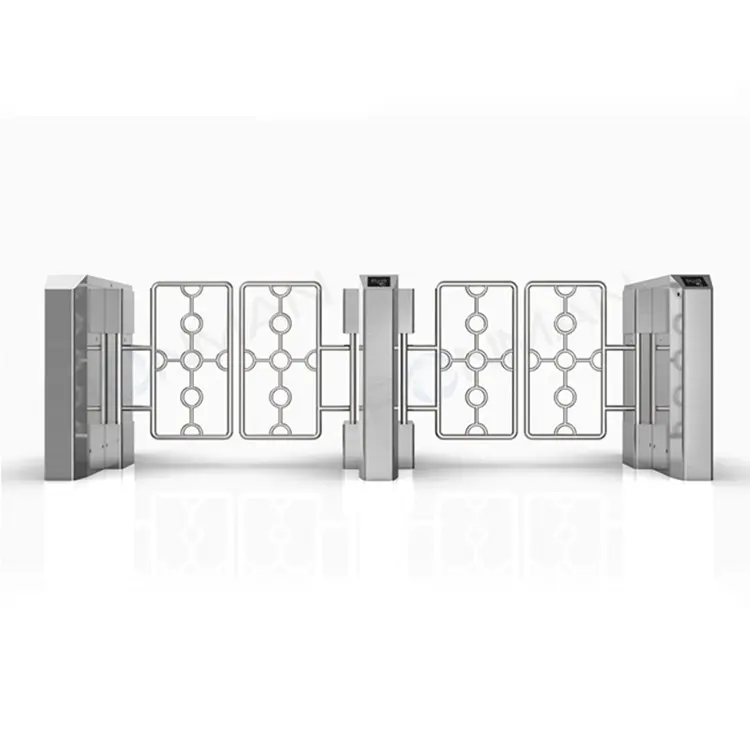

Torniquete oscilante anti-escalada
IM.B216
The IM.B216A will offer high-level safety and efficiency to both indoor and outdoor entry with the use of anti-climbing swing arms and the intelligent access control. It is stainless steel constructed with a customizable width and universal authentication that qualifies it to use in schools, Oficinas, communities and secure places of the population.
-
Sensor：6 Pares
-
Ancho de canal: ≤1200mm
-
Material: 304 stainless steel material
-
Working Environment Temperature: -30℃ ~ +70℃
-
Dimensiones (Personalización aceptada): largura 1400* Ancho 280* Altura 980mm
Reconocimiento facial
Pantalla LED
8 Pares de detectores infrarrojos
QR
Anti-climbing swing turnstile offers safe and convenient pedestrian control. It combines wide lane elaboration, high-tech safety systems and strong construction. The long swinging arms are also meant to deter climbing attempts thereby enhancing the security of the perimeter in sensitive areas. The brushless motors prevent any roughness and noise in movement. And the soft-start and soft-stop logic reduce wear as well as increase the comfort of the user. The gate will stop when safety sensors notice some obstacles to avoid accidents in real time. The combination of stainless steel cabinets and tempered glass or acrylic arms provides durability and professional look and this makes the system reliable both in indoor and outdoor set ups.
Smart Control And Advanced Safety
The anti-climbing swing turnstile is set up by administrators in various modes of verification through RFID cards, Reconocimiento facial, NFC móvil, or QR code scanners. Además, the system has a unidirectional or bidirectional passage, dwell time regulation, and anti-tailgating options. Access control and attendance are compatible with interfaces such as Wiegand, RS-485 and TCP/IP.
Funciones
- Anti-climbing reinforced swing arms.
- Broad aisles to carry luggage, strollers and wheelchair users.
- Silent brushless movement with smooth movement.
- Anti-tailgating, obstacle detecting safety sensors.
- Connection to RFID, biométrico, NFC, or QR.
- Quick-service and lower downtime modular components.
- Stainless steel cabinet with or without glass finishes.
Modular construction makes the maintenance easier since arms, motors or control boards can be replaced quickly without complete dismantling. Remote diagnostics is used to monitor the performance of the motor, the number of cycles, and sensor conditions so that preventive maintenance can be performed before the problem gets bigger. The anti-climbing swing turnstile provides accessibility, durabilidad, and anti-intrusion capability, which help to guarantee secure, efficient and safe people movement in modern facilities.atures, the anti-climbing swing turnstile ensures secure, eficaz, and safe pedestrian management for modern facilities.
- Detalles del producto
- Características técnicas
- Técnicos y características
- Adaptabilidad
- Aplicación
Detalles del producto
Material y estructura de grado industrial
Our anti-climbing swing turnstile delivers wide, silent passage with reinforced safety arms that prevent climbing and unauthorized access. Designed for offices, escuelas, Zonas industriales, y las instalaciones públicas, it combines accessibility with strong security.
- Material: Top cover 1.2 MM SUS304 ;Body 1.0 MM SUS304
- Arm Material:SUS304 Pipe bending
- Resistencia a la corrosión: Aprobado ISO 9227 Prueba de niebla salina (2,000 Horas libres de óxido)
- Rango de temperatura: -35°C to +75°C (Compatibilidad interior/exterior)
- Calificación de Protección: Resistencia al agua y al polvo (Funcionamiento estable bajo lluvias intensas y polvo)
- Diseño：Steel frame structure/standard stainless steel shell
Características técnicas
Especificaciones técnicas básicas
| Dimensiones | 1200*280*980mm（single machine core）
1200*360*980mm （dual machine core) |
| Sensor | 6Pares |
| Sistema de transmisión | Brushless motor (24~36VDC) |
| Velocidad de adelantamiento | ≤30 persons/minute (memory mode can be turned on) |
| Ancho de paso | 600-1200milímetro(Customizable) |
| Tensión de alimentación | AC220V±10%，50/60Hz |
| Access control | Supports RFID/Face recognition/QR scanning /RS485/Relay interfaces etc. |
| contact | RS232 |
Técnicos y características
Características técnicas y de seguridad
- Características de seguridad: Anti-pellizco (0.1rebote automático cuando choca contra un obstáculo) in real-time and intrusion detection (Notificaciones audiovisuales y sincronización remota de plataforma)
- Función de alarma: Con sonido, Capacidad de alarma ligera.
- Control de acceso: Existen muchos tipos de dispositivos biométricos que están conectados a puertos externos.
- Anti-interferencia: Es capaz de evitar la desviación de la puerta por el parámetro exterior, como la interferencia electromagnética.
- Configuración del modo de paso: Paso de sentido único, Paso de doble sentido, El paso libre, etc., puede establecerse mediante los botones del panel de control principal.
- Reinicio Automático: El tiempo de pasatiempo puede programarse mediante un interruptor, por defecto es 10 sobras.
- Apaga y abre la puerta: Abre la puerta después de apagar la corriente.
Adaptabilidad
Adaptabilidad al mercado global
- Voltaje: 110-240V entrada de amplio alcance (Compatibilidad global de red)
- Soporte lingüístico: 24/7 Servicio en Inglaterra
- Certificación：ESE,FCC,ISO
Aplicación
Escenarios de aplicación
- indoor/outdoor/semi-outdoor pedestrian/bicycle passing places
- such as: primary and secondary schools/office buildings/hotels/ residential communities/factory parks/hospitals/corporate and public institutions/government auditoriums/GYM, etcetera
