Control de acceso por código QR para máquina todo en uno
IM.CR05EU
The IM.CR05EU QR Code Access Control Integrated Machine is a new-generation full-screen access control integrated device independently developed by our company. Boasting a fashionable and elegant appearance design, it adopts an aluminum alloy shell that features explosion-proof and anti-tamper properties, with a waterproof rating reaching IPX7, ensuring stable operation in various harsh environments.
-
Ethernet Interface: 2.0 angled plug-in wiring terminal
-
Velocidad de reconocimiento: ≤200ms
-
Capacidad de almacenamiento: 40,000 (20,000 QR codes/20,000 cards); 60,000
-
Dimensiones externas: 108.8×69×15 mm
-
Display Screen: OLED 0.96-inch display screen
Reconocimiento facial
Pantalla LED
8 Pares de detectores infrarrojos
QR
The IM.CR05EU QR Code Access Control Integrated Machine is a next-generation all-in-one authentication device designed for modern access control systems requiring fast, contactless, and compact solutions. Developed in-house with advanced engineering and user-friendly features, this unit is ideal for applications in office buildings, smart communities, parking facilities, residential areas, y zonas industriales.

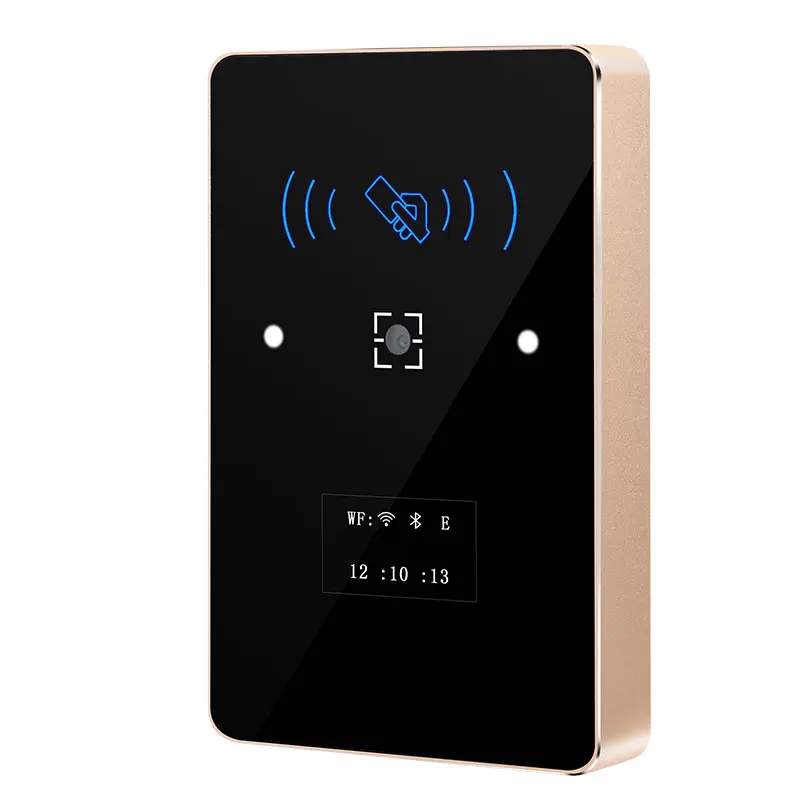

Its compact form factor (108.8×69×15 mm) and sleek full-screen OLED display give it a clean, modern appearance suitable for wall mounting or embedded installation. The aluminum alloy shell enhances durability with explosion-proof y anti-tamper characteristics, while its IPX7 waterproof rating ensures stable outdoor and indoor performance—even in rain, humidity, or dusty environments.
Con un recognition speed of ≤200ms, users experience quick response times when scanning QR codes or cards. The device supports dual storage capacity, handling hasta 20,000 QR codes and 20,000 Tarjetas IC simultaneously, with an expandable capacity of hasta 60,000 entries. This makes it ideal for high-frequency access scenarios with a large number of authorized users.
The 0.96-Pantalla OLED de pulgadas provides real-time feedback, including user prompts, scan results, and operational status, enhancing user interaction and reducing entry errors. The screen remains visible under low-light conditions and is energy efficient.
Ventajas
- Compact and full-screen design for minimal installation footprint
- ≤200ms fast QR code or card recognition ensures efficient throughput
- Stores up to 40,000 records by default, ampliable a 60,000
- Dual authentication support: QR code and IC card
- IPX7 waterproof rating for stable operation in rain or outdoor use
- Explosion-proof and tamper-resistant aluminum alloy housing
- OLED 0.96” display screen provides real-time access status
- Secure and fast communication via 2.0 Ethernet angled plug-in terminal
- Suitable for integration with gate systems, doors, elevadores, and more
With its blend of rugged construction, compact design, and high-speed performance, the IM.CR05EU QR Code Access Control Machine offers a reliable solution for enterprises seeking secure, scalable, and user-friendly access control infrastructure.
- Product Details
- Características técnicas
- Instalación y uso
- Adaptabilidad
- Preguntas más frecuentes
Product Details
Características funcionales
- ≤200ms ultra-fast QR code or card recognition
- Dual-authentication support: Tarjeta IC + dynamic QR code
- Stores up to 60,000 user credentials (Códigos QR + naipes)
- High-brightness OLED screen offers real-time display and feedback
- IPX7 waterproof protection for stable performance in harsh conditions
- Aluminum alloy housing provides strength, durability, and tamper resistance
- Compact and lightweight for easy installation in tight spaces
- Compatible with various access control, elevator, and gate systems
Características técnicas
Especificaciones técnicas básicas
| Parámetro | Especificación |
| Modelo | IM.CR05EU |
| Velocidad de reconocimiento | ≤200 ms |
| Capacidad de almacenamiento | 40,000 (20,000 Códigos QR + 20,000 Tarjetas IC); hasta 60,000 |
| Display Screen | 0.96-inch OLED |
| Shell Material | Aleación de aluminio, explosion-proof and anti-tamper |
| Waterproof Rating | IPX7 |
| Dimensiones externas | 108.8 × 69 × 15 mm |
| Comunicación | 2.0 angled plug-in Ethernet terminal |
| Supported Methods | QR code and IC card |
| Método de instalación | Wall-mounted / Embedded |
| Operating Voltage | DC 12V |
| Use Environment | Interior / Semi-outdoor (covered) |
Instalación y uso
Instalación y uso
Antes de la instalación, confirm the mounting surface is clean, flat, and located near the access point (puerta, door, or elevator panel). Use the included mounting template to mark screw and cable positions.
-

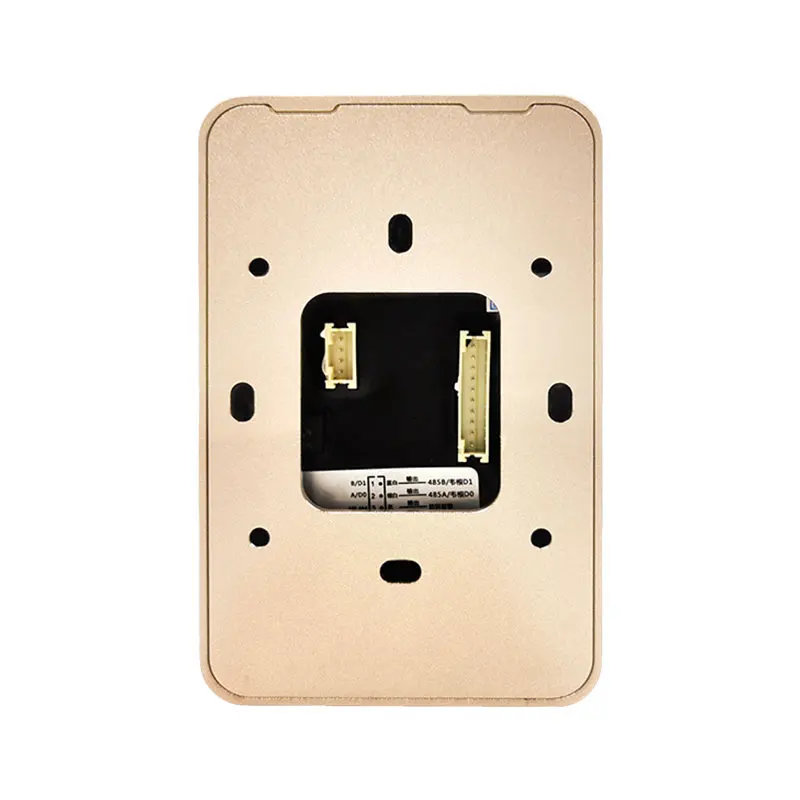

Alambrado: Route the power and Ethernet cables through the designated hole. Connect the device using the 2.0 angled plug-in terminal.
-
Montura: Secure the device using expansion screws or screws suitable for the wall type (metal, concrete, drywall).
-
Power On: Once powered (DC 12V), the OLED screen will light up and display boot status.
-
Configuración: Use the built-in interface or linked controller platform to add authorized QR codes, Tarjetas IC, and adjust network settings.
-
Usage: Present the authorized QR code or card near the scanner. If verified, the screen will confirm access, and a signal will be sent to the connected access terminal (door lock, puerta, elevator).
Routine maintenance includes checking screen visibility, cleaning the surface gently with a dry cloth, and confirming communication stability.
Adaptabilidad
Adaptabilidad al mercado global
- Voltaje: 100-240V entrada de amplio alcance (Compatibilidad global de red)
- Soporte lingüístico: 24/7 Servicio en Inglaterra
- Certificación: ESE, FCC, ISO
Preguntas más frecuentes
Preguntas más frecuentes
1. Can the device store both QR codes and IC cards at the same time?
Yes. It supports dual storage: 20,000 Códigos QR + 20,000 Tarjetas IC, ampliable a 60,000 entries.
2. ¿Es adecuado para uso en exteriores??
The device is IPX7 waterproof, making it ideal for semi-outdoor or sheltered installations.
3. How fast does it scan a QR code?
The recognition speed is ≤200 ms, allowing near-instant access response.
4. Can it be integrated into elevators or access gates?
Yes. It supports Ethernet communication and works seamlessly with elevators, portones, or turnstiles.
5. What kind of screen does it have?
It features a 0.96-inch OLED screen, which is visible in low light and highly energy-efficient.
